Delivery: Normally 3 - 4 Weeks
- High quality German made - long lasting
- End Frames - 500(h) x 300(w) x 190(d) mm
- Rails - 100(w) x 40(d) mm
- Highly visible
- Strong effective protection
- Adjustable widths
- Easily installed with minimum loss of space
- Fully welded joints and base plates - ultimate strength and reliability
- Recommended fixings - 12no. 8 x 100mm rawl bolts

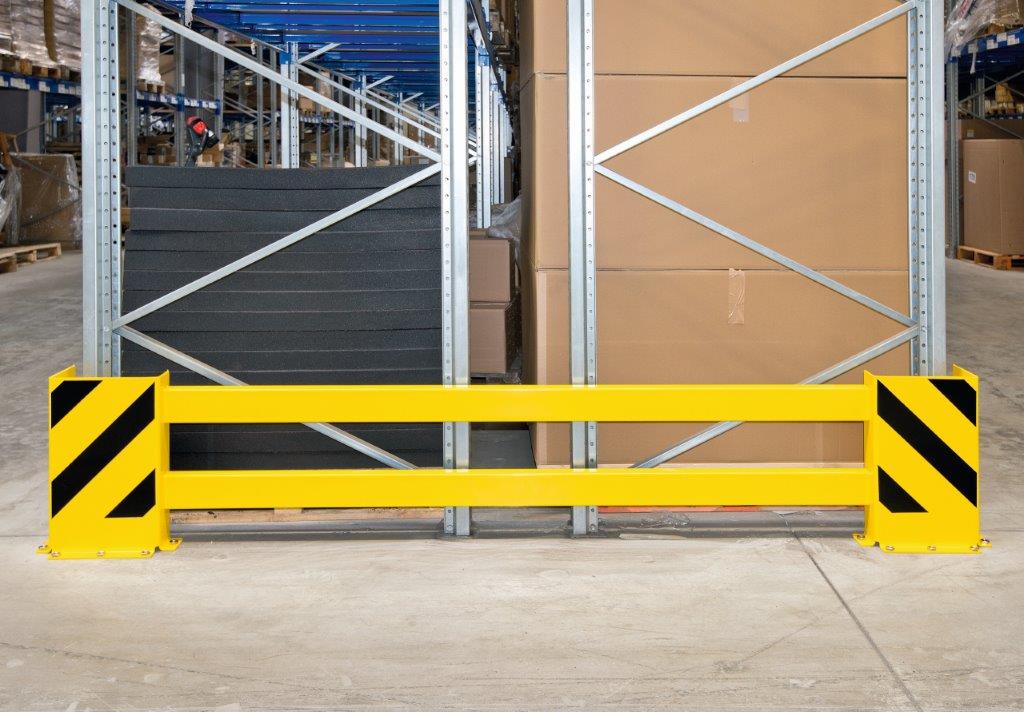

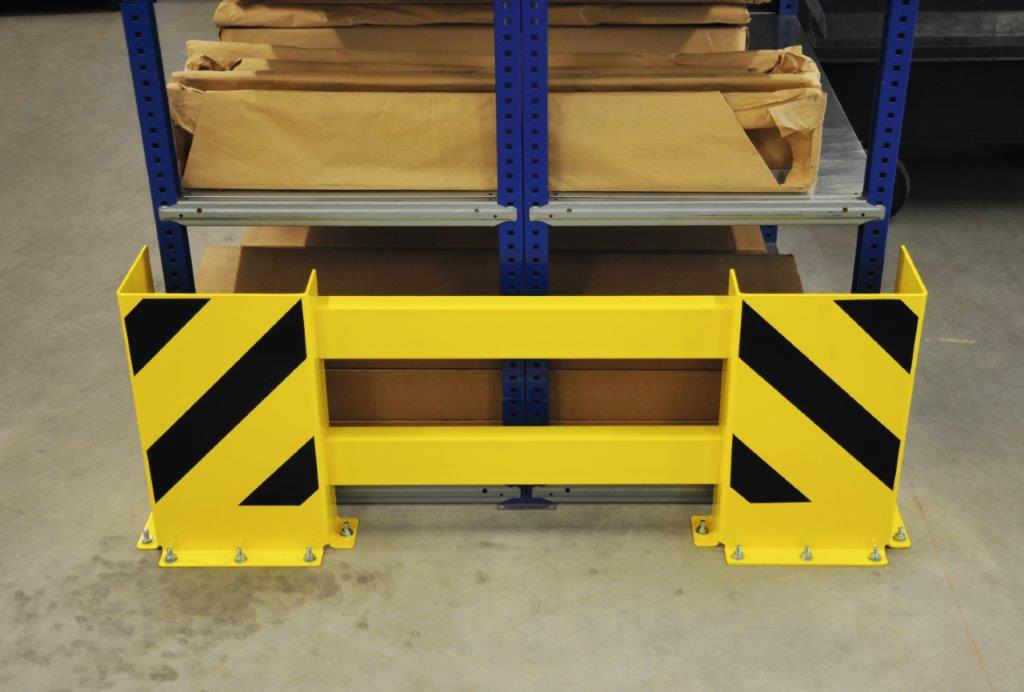

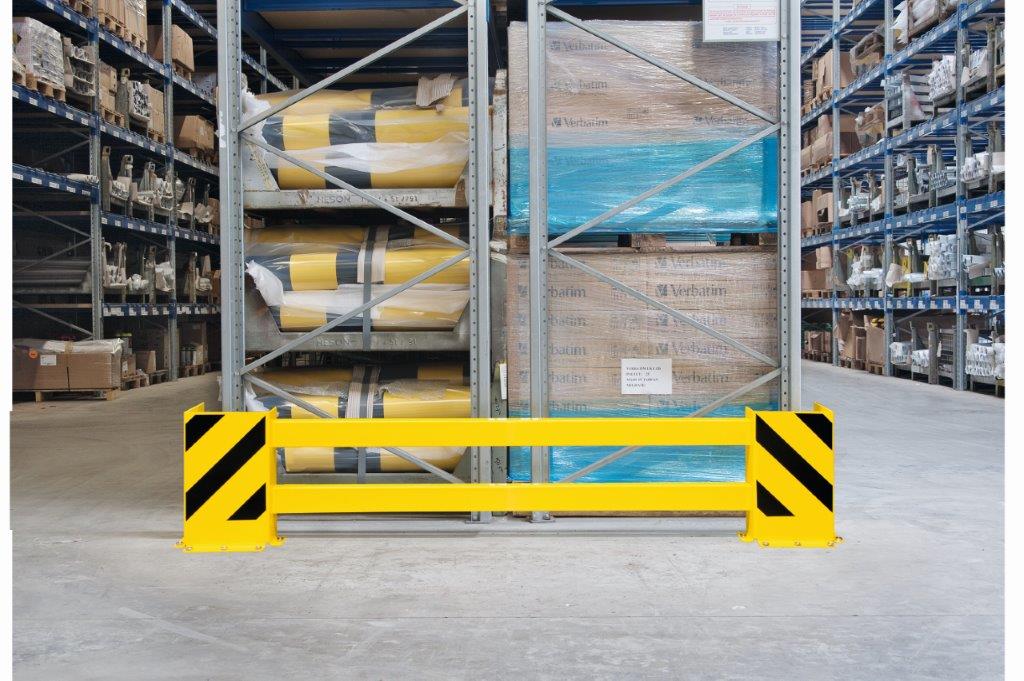

The Black Bull Pallet Rack End Frame Protectors can be installed quickly and easily into your warehouse or storage facility and provide immediate protection to pallet rack frames, walls or other nearby assets. These pallet frame protectors are made with tough German steel and provide protection during collisions from forklifts, pallet trucks and many more.

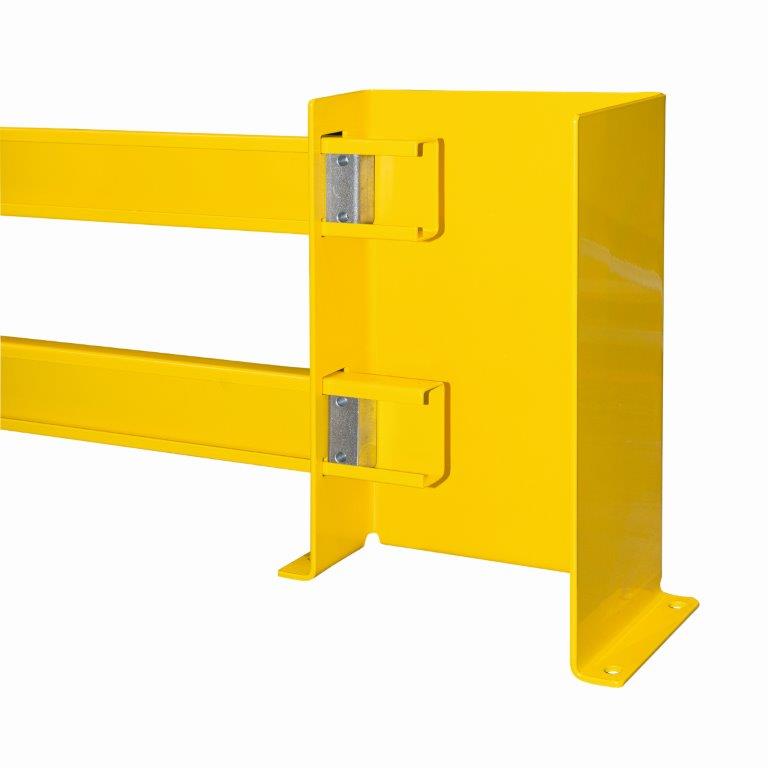

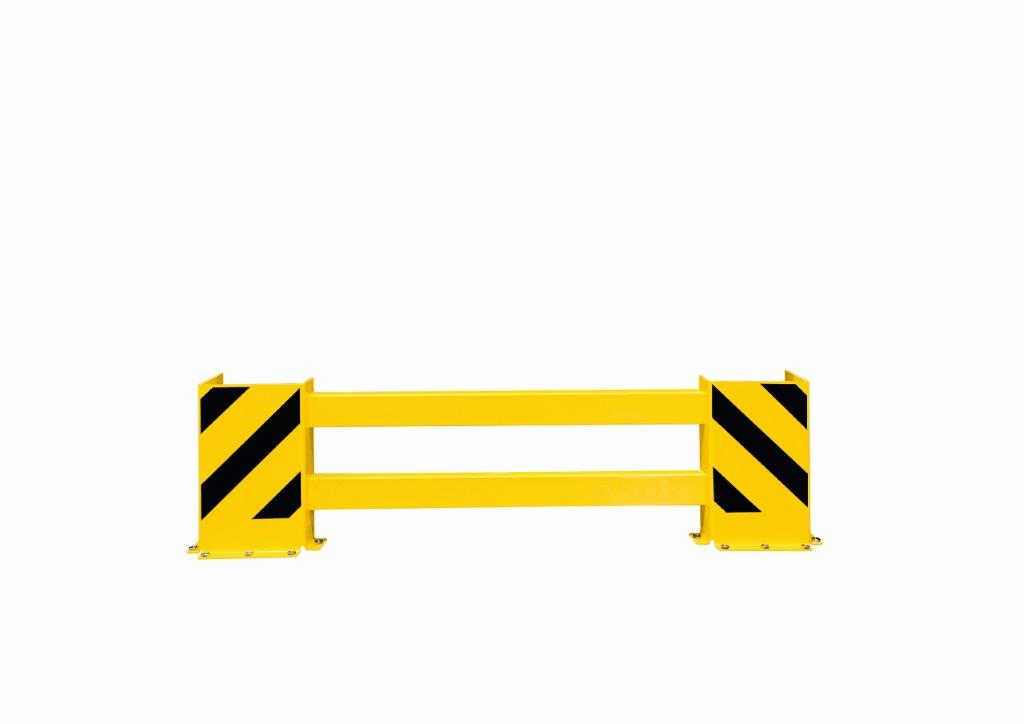

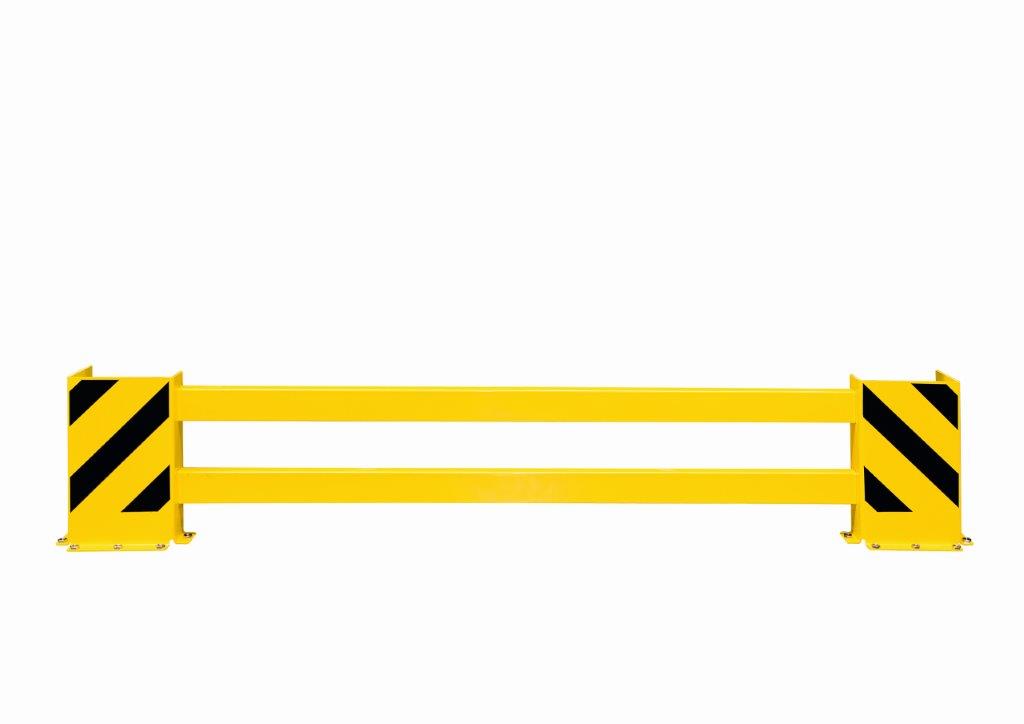

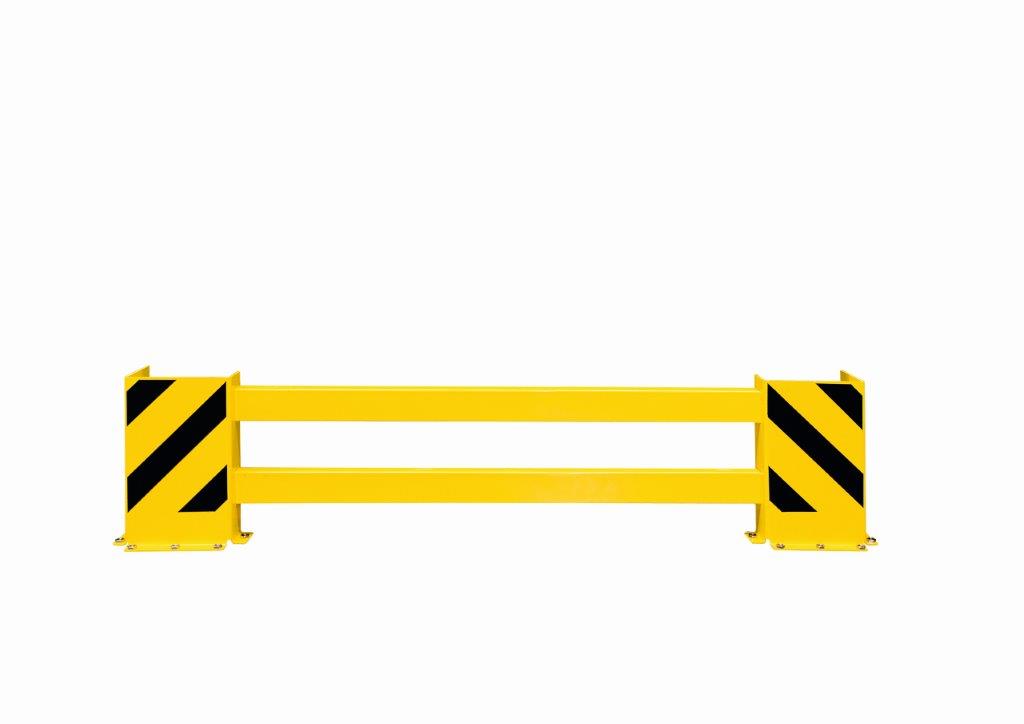

Each protecting unit comes with two main end units with protecting rails through the middle. Each unit can be adjusted to fit various lengths before they are fitted.
The pallet rack protectors are made from tough, durable steel and are powder coated yellow for excellent visibility in the workplace, especially with the added black markings to really catch the eye of nearby employees.
Where the main end units help to protect the ends of pallet rack frames, the rails through the middle add extra protection for goods or racks in the centre of the unit.
The base plates and joints come fully welded for ultimate strength and reliability (not just tack welded).
Applications:
Warehouses, distribution depots, manufacturing units etc.
Dimensions:
- End frames: 500mmH x 300mmW x 190mmD x 5mm Gauge
- C-profile Rails 100mmW x 40mmD x 3mm Gauge
- Set 1 - Adjustable Width: 900mm to 1,300mm
- Set 2 - Adjustable Width: 1,700mm to 2,100mm
- Set 3 - Adjustable Width: 2,300mm to 2,700mm
Material:
- End frames & ‘C’ Rails: Steel
- Securing Blocks: Aluminium
Finish: Powder Coated Yellow with Black striping on End Frames (Indoor use)
