Compact Vehicle Height Restrictor - Pivot Style

Style Price Quantity
4.5 Metre Clearance (765439)
€2,984.88ex VAT
€3,671.40inc VAT
5 Metre Clearance (765442)
€2,999.76ex VAT
€3,689.70inc VAT
3.5 Metre Clearance (765443)
€2,811.48ex VAT
€3,458.12inc VAT
4 Metre Clearance (765444)
€2,970.00ex VAT
€3,653.10inc VAT
3 Metre Clearance (765450)
€2,767.68ex VAT
€3,404.25inc VAT
Allow 3 - 4 Weeks For Delivery

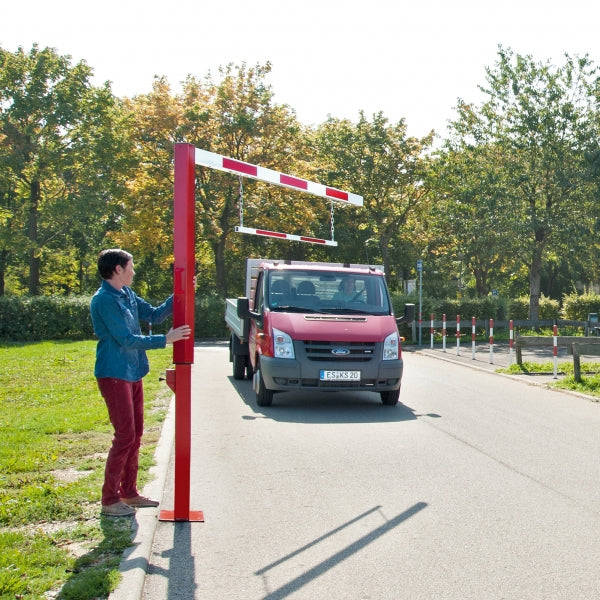

The Compact Vehicle Height Restrictor - Pivot Style  has a swivel action which rotates to allow for the controlled passage of vehicles

  • Main Post - 100 x 100mm
  • Boom - 105 x 60mm
  • Height - 2810mm (adjustable)
  • Optional nudge bar as extra
  • Stable base construction for anchor bolts
  • Made from tough aluminium
  • Red and white reflective strips for high visibility
  • Can be fitted with optional nudge bar
Easy Installation
Heavy Duty

The Compact Height Restrictor - Pivot Style provides an excellent means of deterring entry to particular vehilcles.  These height restrictors are made from strong steel and aluminium construction ideal for restricting access to vans, commercial vehicles, caravans, motorhomes etc. to the likes of car parks and traffic lanes.

This barrier can be easily rotated to allow access for authorised over-height vehicles, emergency vehicles etc. It is lockable in open or closed positions with triangular key, optional cylinder lock or locking pin secured by padlock (padlock not supplied).

Each part of the height restrictor is made from tough aluminium and provides excellent, reliable ease of use while it is installed. What's more, you can also add  nudge bar to further reduce the allowed height by another 400mm, perfect for warning oncoming drivers.

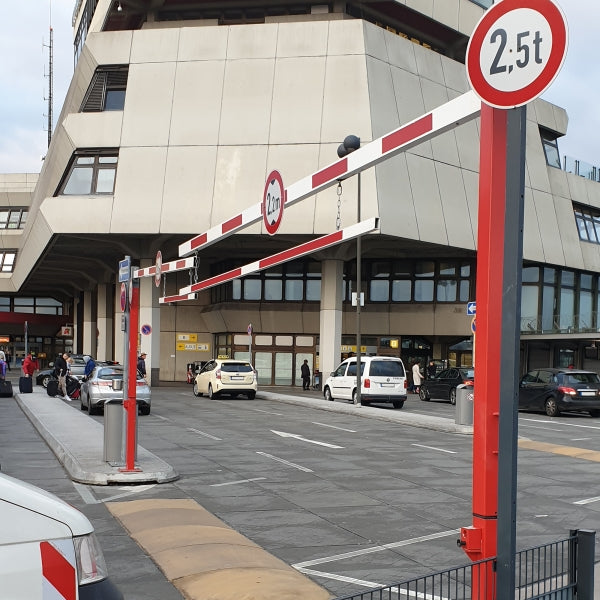

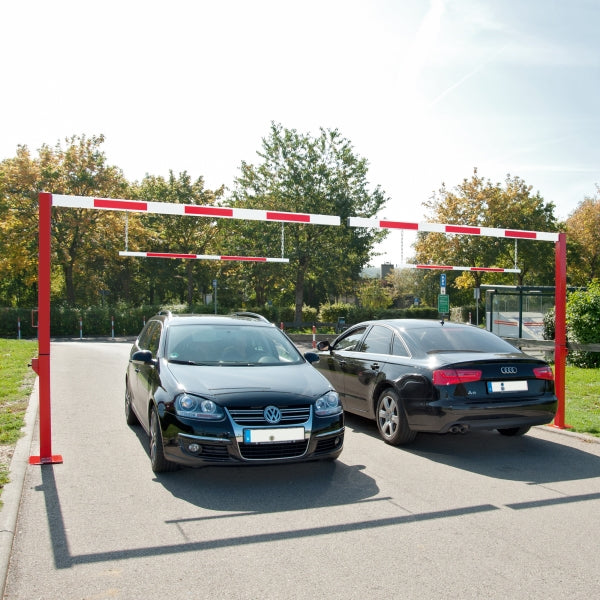

For wider roads you can also install two of these height restrictors so that the booms meet in the middle.  This allows for one or both of the restrictors to be used at the same time, either letting traffic flow on both sides, having the road fully open or of course fully closed to larger vehicles.


  • Support post: 100 x 100 x 3mm
  • Overall height: 2,810mm
  • Base plate: 295 x 295 x 10mm Drilled 6 fixing holes 15mm Ø
  • Aluminium cross-bar: 105 x 60mm
  • Max. Headroom: 2,650mm
  • Widths: 3,205 to 5,205mm
  • Adjustable heights: 2,200mm, 2,350mm, 2,500mm, 2,650mm. (Heights can be reduced further by up to 400mm with optional chain suspended nudge bar)
