The Diamond Stat™ ESD Anti-fatigue Mat offers both anti-fatigue and static protection in one mat. The combination of a static dissipative tough top surface laminated on to a comfortable sponge base gives maximum durability coupled with fatigue relief.
The diamond deck plate surface provides traction and allows easy twist turns. RedStop™ technology, engineered to increase friction with smooth floor surfaces anchoring the mat in place.

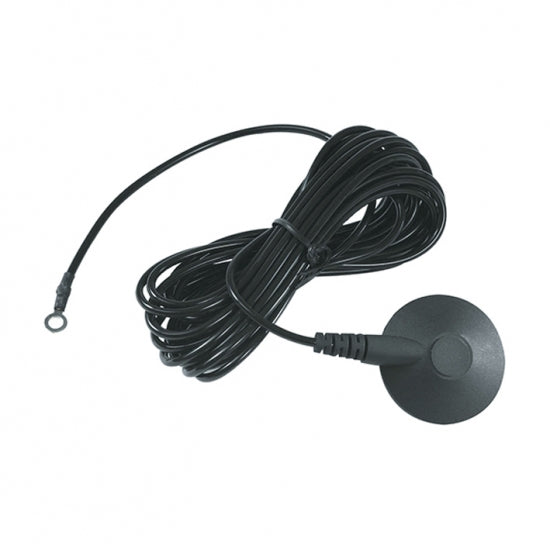

Electro Static Discharge (ESD) protective mats are formulated to drain static electricity from workers thereby avoiding unpleasant static shock while safeguarding equipment. The mat comes standard with a 10mm female socket attached and grounding cord.
Recommended use for the Diamond Stat™ ESD Anti-fatigue Mat:
Suitable for heavy duty conditions.

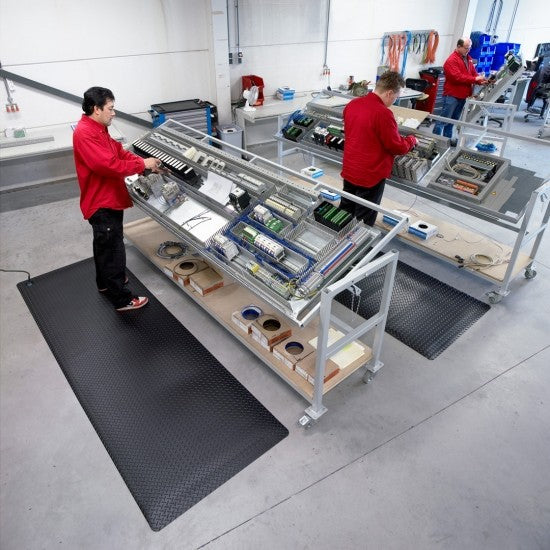

For placement in ESD assembly lines, picking, packing and logistics warehouses, individual work stations for use with static sensitive components or workstations.
- Thickness: 14mm
- Weight: 6.5kg per m²
- Uni-Fusion™ manufacturing technology.
- All 4 sides are bevelled to minimize tripping.
- Fire classification Cfl-s1, according to DIN EN13501-1.
- Meets IEC61340-4-1 (category DIF), measured resistance Rg 106 - 109 Ω, Rp 106 - 109 Ω.
- Electrostatic charge (walking test), meets ISO6356 and EN1815.
- Free of toxic DOP and DMF.
