HR2 Cable Protection Ramp

Option: Main Section
Trade Price
Sale price€99.50ex VAT
€122.39inc VAT
SKU: 756336
Tested for HGV Use

In Stock - Delivery 1 - 2 Days

Speed must be limited to 8km/h in the area, and appropriate warning signage must be deployed. Suitable for use with occasional HGV traffic on level surfaces.

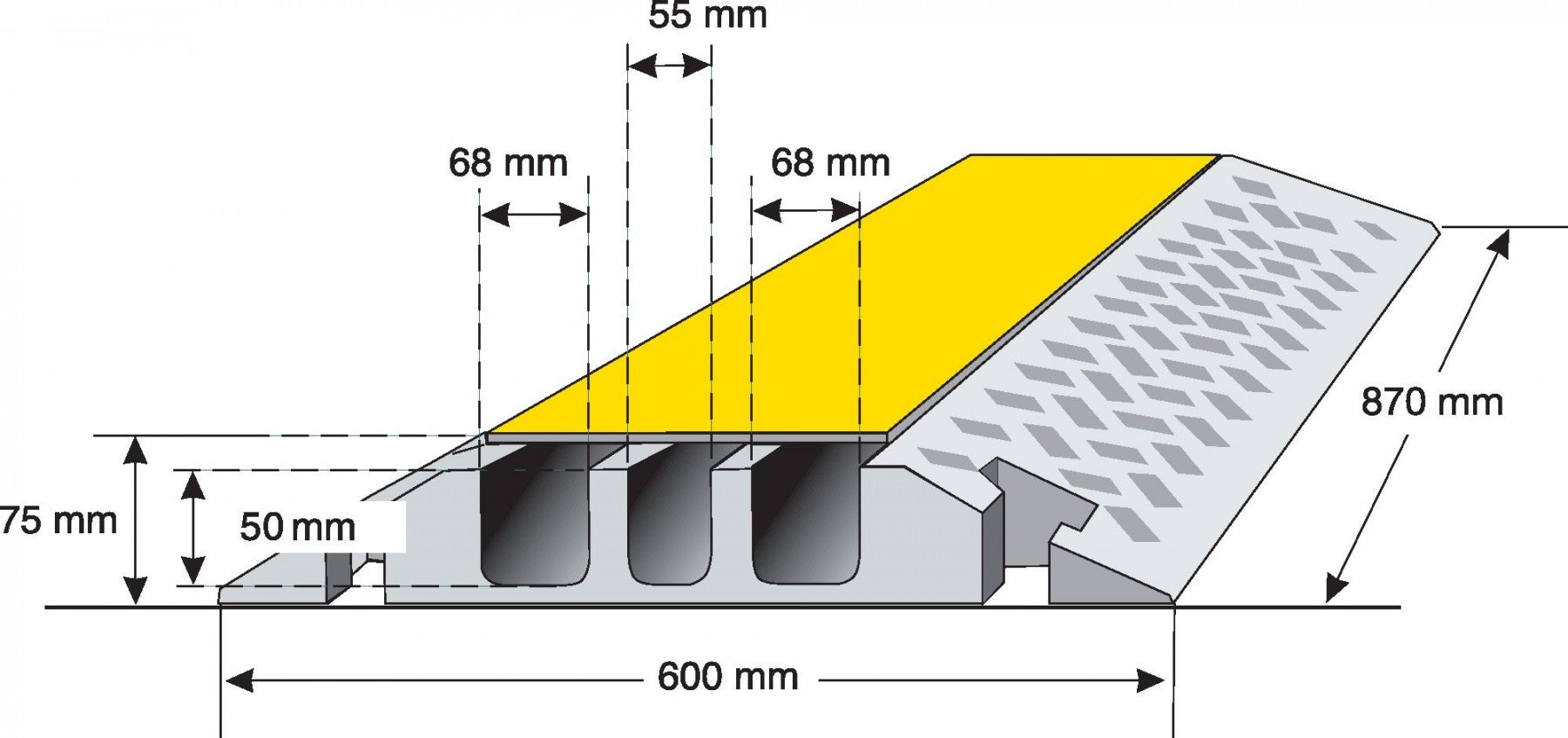

  • 870(L) x 600(W)x 75(H) mm - excluding male connector
  • 3 channels: 2 cables 68 x 50mm; 1 cable 55 x 50mm
  • 10 tonne weight limit per axle
  • Easily and quickly deployed
  • Three top loading channels for cables/hoses
  • Anti-slip hinged top panel
  • Interlocking design feature
  • Strong robust construction
  • Suitable for use with occasional HGV traffic on level surfaces

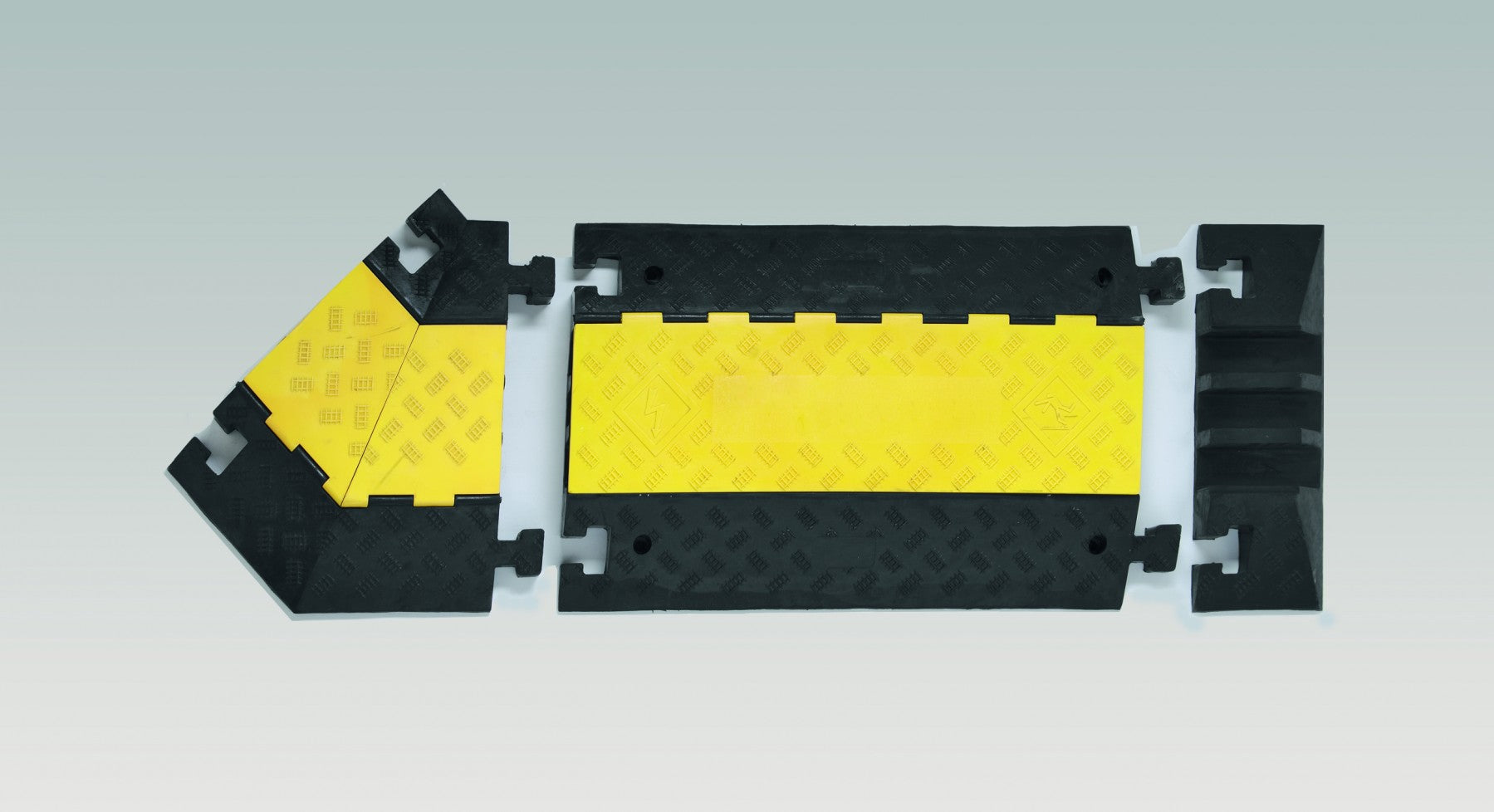

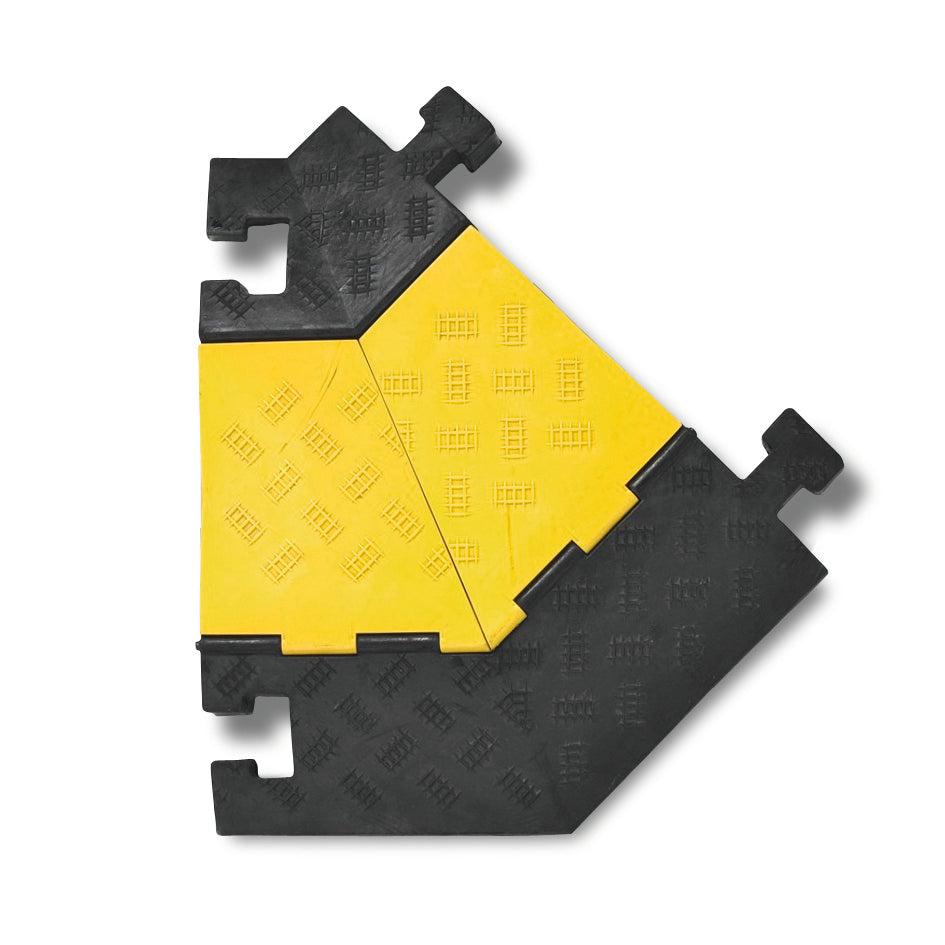

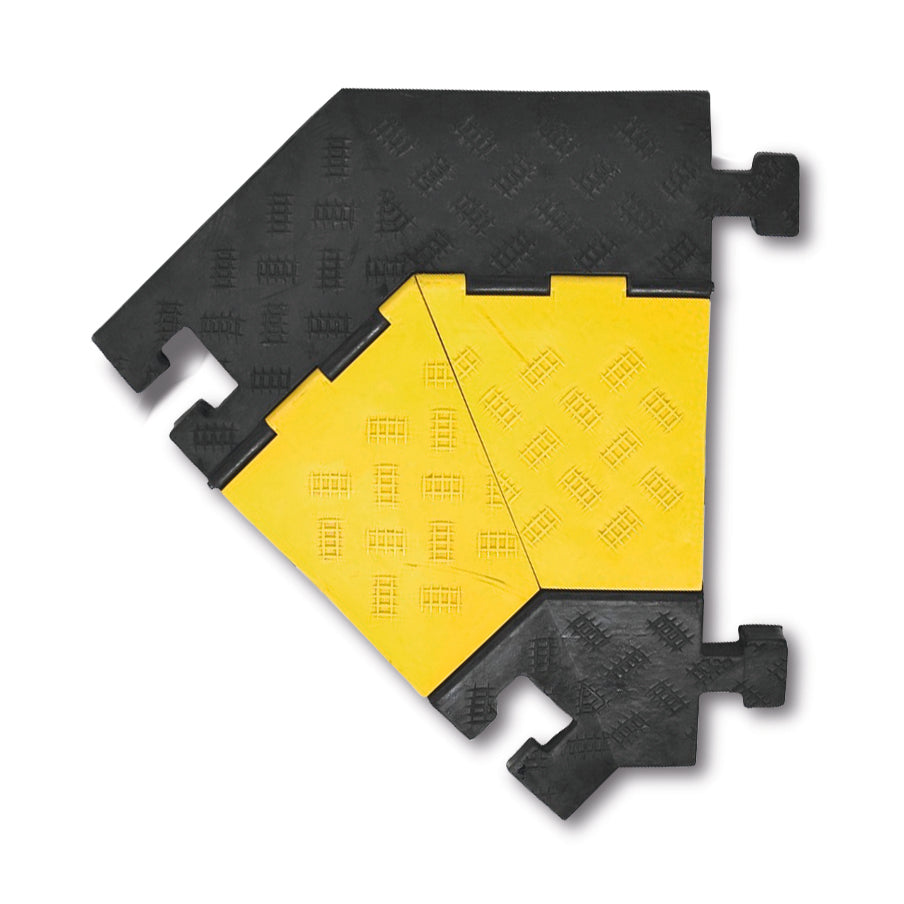

  • Corner and end-sections available on request

It is important to note that the HR2 cable ramp should not be left unnattended while in use.

Easy Installation
High Visibility
Rated at 5mp/h
Professional Use
Heavy Duty
Description

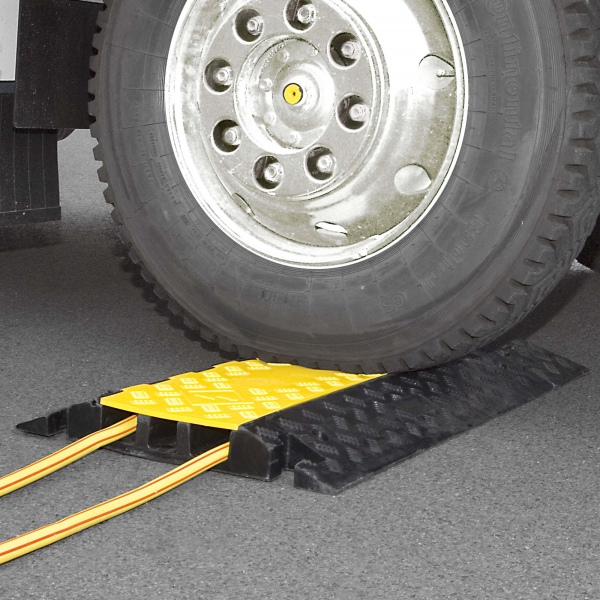

The HR2 Cable Protection Ramp lets you drive over cables, hoses and pipes without causing them damage. The tough rubber has been tested with HGVs, allowing you to work without moving wires every time a vehicle needs to pass by. The opening flap on the top of the cable ramp gives you simple access to your cables and hoses, giving you an easy way to place and remove them. The Cable Protection Ramp is easily and quickly installed.

This ramp has a visible yellow cover with a checker plate anti-slip surface moulded in high-grade polypropylene. It can be used as a permanent solution thanks to 4 fixing holes which allow you to bolt the cable ramp to the surface. You can also use it as a temporary solution, as it’s light enough to carry but will stay in place if a vehicle passes over it.

All sections of this cable/hose protection system feature an interlocking system for interlocking sections. Suitable for heavy-good traffic, which is common in warehouses and factories. Male End Caps and Female End Caps are also available to complete your cable ramp. It's also great for home use across driveways and entrances, allowing you to do DIY and renovation work and still have access to your parking spaces. Order your Cable Protection Ramps online with Pittman Traffic and Safety Equipment today.


Applications:

Construction sites, distribution depots, emergency works, road works, etc.


Specifications:

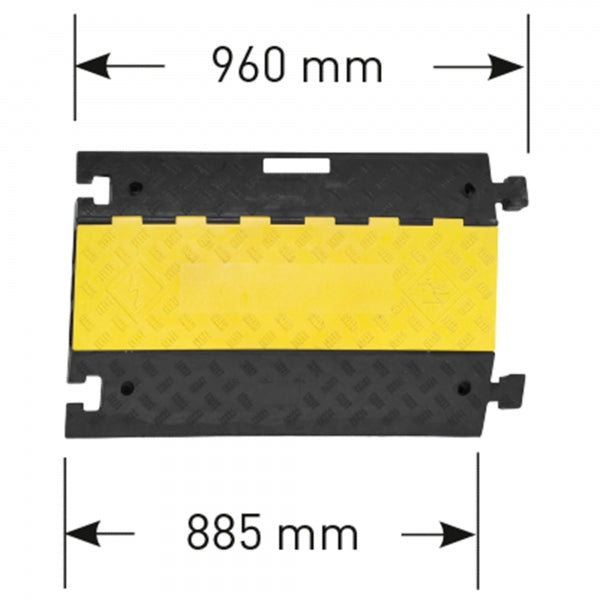

  • 960mm(L) x 600mm(W) x 75mm(H) - including male connector
  • 870mm(L) x 600mm(W) x 75mm(H) - excluding male connector
  • Body Material: Hard rubber
  • Cover Material: Polypropylene
  • Body Colour: Black
  • Cover Colour: Yellow

We recommend that appropriate warning signs are used with this product. Recommended speed 8kmph.

HR2 Cable Ramp FAQ

Yes, HR2 cable ramps are suitable for use with HGVs. However, please note -

  • There is a 10 tonne weight limit per axle
  • Speed must be limited to 8km/h
  • Suitable only for occasional HGV traffic
  • Must be placed on level surfaces
  • Cannot be left unnattended while in use
  • Lids should be fully closed and inspected regularly

Cable ramps are suitable for temporary cable protection on a project. If you require permanent protection we recommend using a speed ramp with cable channels instead. Cable ramps should not be used as a traffic calming measure to slow vehicle traffic.

A HR2 ramp can protect up to 3 cables at once. Each HR2 is fitted with 2no. 68 x 50mm and 1no. 55 x 50mm channels. These are ideal for protecting general power cables and power lines on site.

HR2s are very easy to install and can be attached end on end with other HR2 ramps. The loose lay design means that no installation is required. Corner and end sections are also available on request.
