Product Overview

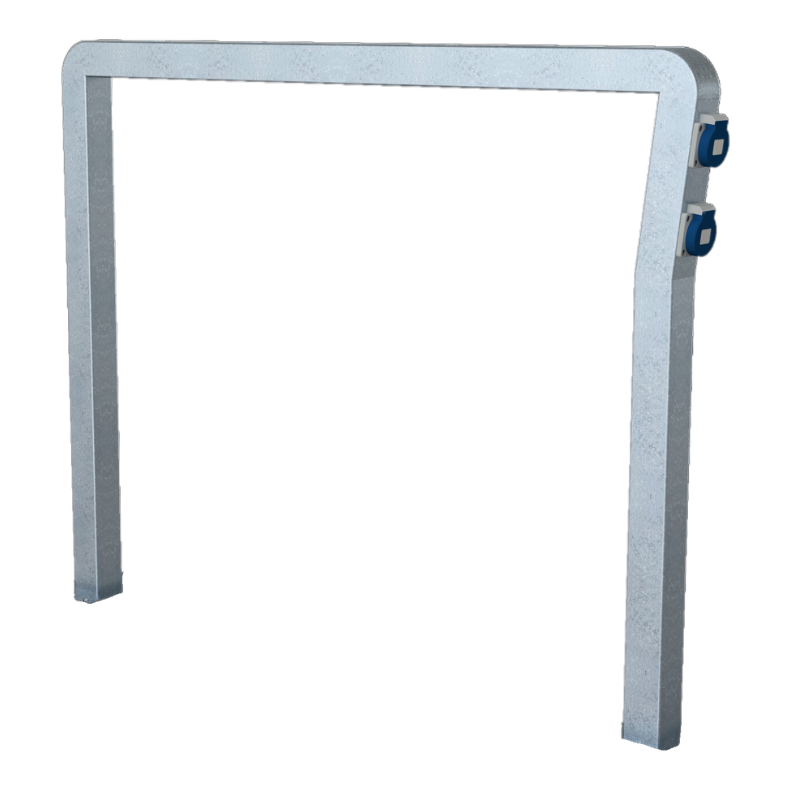

The E-Bike Sheffield Cycle Stand offers a sturdy and practical solution for secure bike storage while also providing a convenient charging option. Constructed from robust steel, this stand is built to withstand the elements and resist wear and tear, ensuring long-lasting durability.
The stand includes integrated charging capabilities, allowing cyclists to power up their e-bikes with ease while securely parked. The sub-surface installation ensures the stand remains stable and secure, making it a reliable choice for public spaces. The wide design and strong tubing provides ample support for bikes of various sizes.
You can special order the stand with a powder-coated finish to add a touch of style while enhancing its corrosion resistance. The E-Bike Sheffield Cycle Stand is an ideal blend of functionality, security, and convenience.
Technical Data Specification
| Product Characteristics | |
| Material: | Galvanised steel |
| Overall Height: | 1200mm |
| Above Ground Height: | 900mm |
| Width: | 800mm |
| Tube Dimensions: | 60x60x2mm |
| Fixing: | Sub-surface |

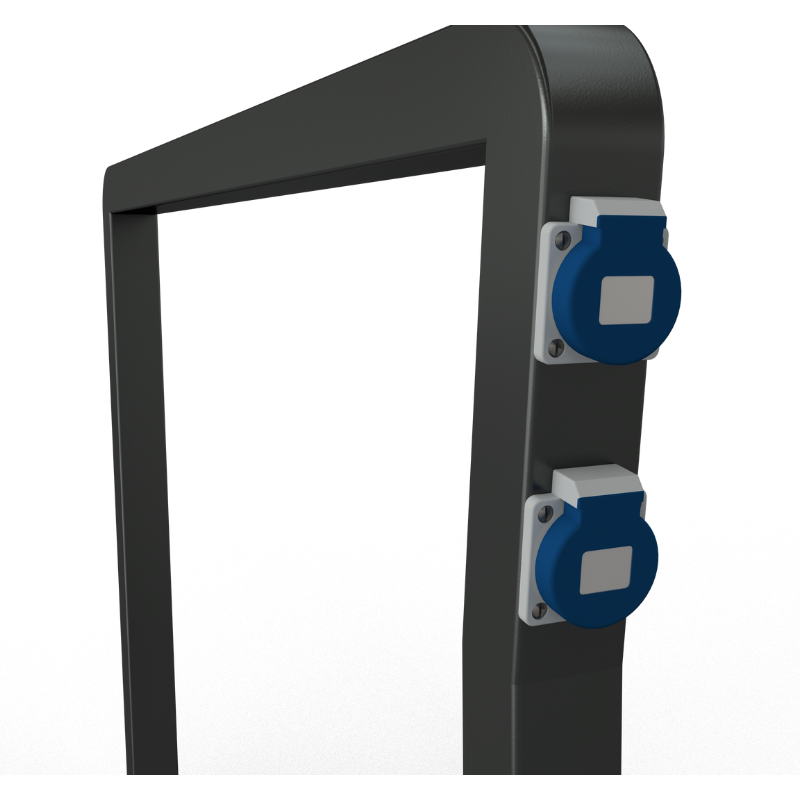

| Socket Detail: | 2 x UK IP54 |
| Applications: | Ideal for public spaces, office blocks, |
| shopping centres, schools and retail parks. |
How It Works
1. Prepare the Area: Mark out the area where the stand will be installed and identify if the necessary wiring is available in the area. Dig out the foundation for the legs, approximately 500mm deep. If multiple stands are being installed side by side, leave a minimum of 800mm between each.
2. Wire the Stand: Using a registered electrician, hook up the wiring from the stand to the mains supply.
3. Install the Stand: Concrete the legs of the stand into the pre-dug holes, approximately 300mm below ground.
4. Ready For Use: Once the concrete is set, the stand should be ready for immediate use with standard or e-bikes.
