Product Overview

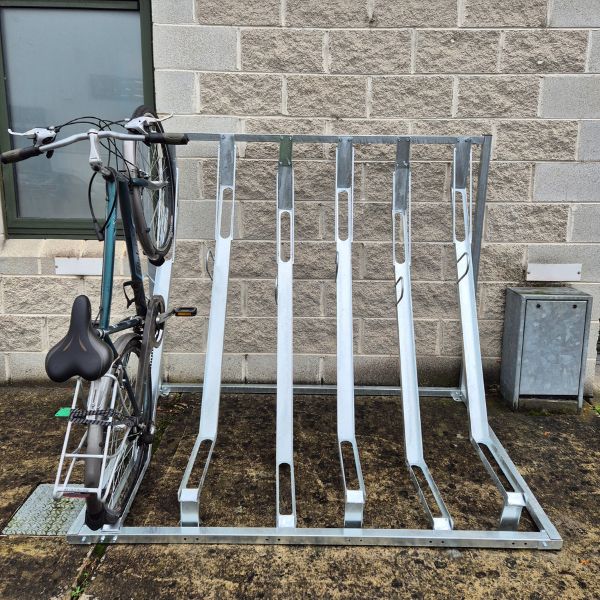

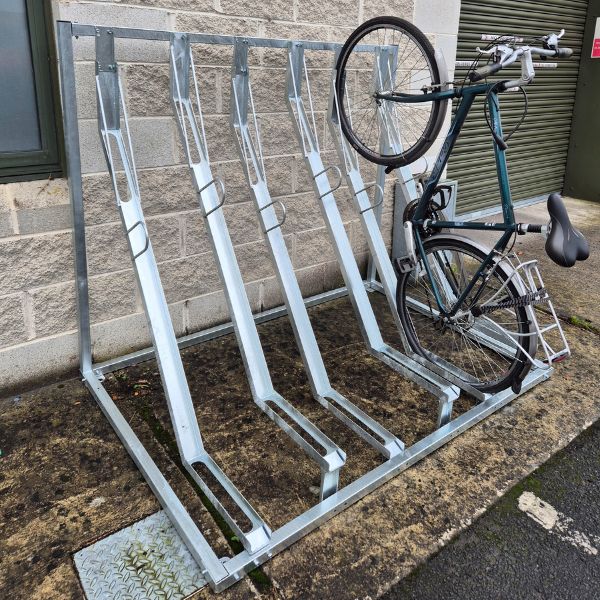

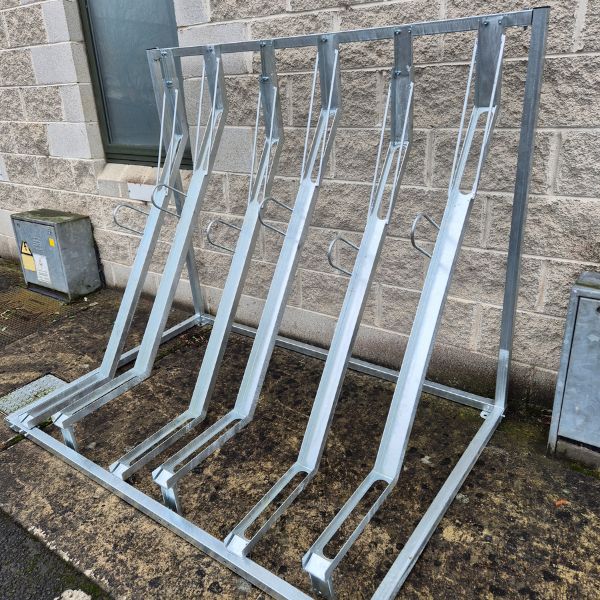

The GHP Semi Vertical Bike Rack is the perfect solution for keeping your bikes secure and organised while maximising space. With its clever high-low design, it easily accommodates up to 6 bikes without crowding or tangling handlebars.
Built for durability, this rack is made from hot-dip galvanised carbon steel is rust resistant and ensures long-lasting protection against the elements. Its design allows you to simply roll the bike wheels into place for quick and effortless storage. Plus, the built-in locking hoops add an extra layer of security, allowing bikes to be locked in place and giving cyclists peace of mind.
The rack bolts securely into concrete, providing a stable and reliable foundation. The GHP semi-vertical bike rack is a smart and practical bike storage choice for public and private bike parking facilities.
Technical Data Specification
| GHP 4-Bike Semi Vertical Bike Rack | GHP 5-Bike Semi Vertical Bike Rack | GHP 6-Bike Semi Vertical Bike Rack | |
|---|---|---|---|
| Product Code | 755839 | 755840 | 714019 |
| Material | Hot-dip galvanised carbon steel (in accordance with BS EN ISO 1461) | ||
| Height | 1495 mm | ||
| Length | 1240 mm | 1535 mm | 1840 mm |
| Depth | 1209 mm | ||
| Fixing Hole Diameter | 14 mm | ||
| Assembly Fixings | Hexagonal cylindrical head bolts – M8 × 55mm | ||
| Installation Fixings | M10 × 10mm expansion bolts | ||
| Applications | For use in office blocks, shopping centres, hospitals and warehouses. | ||
How It Works
1. Assess the Area: Measure the area to ensure there is enough height, width and depth for the rack. At least 2 metres of empty space is needed in front of the rack to allow the bikes to roll off easily.
2. Assemble the Rack: Using the assembly instructions, put the rack together using the fixings included.
3. Mark the Area: Move the rack into the area you intend to install it. Mark out the holes for installing the rack.
4. Drill the Holes: Drill the holes required for installation. We recommend bolting the rack onto concrete for maximum stability.
5. Install the Rack: Line up the rack with the drilled holes and bolt it securely into place using the ground fixings supplied.
6. Ready for Use: Once installed, the rack is ready to use immediately.
