Compact Gas Assisted Boom Barrier

Style Price Quantity

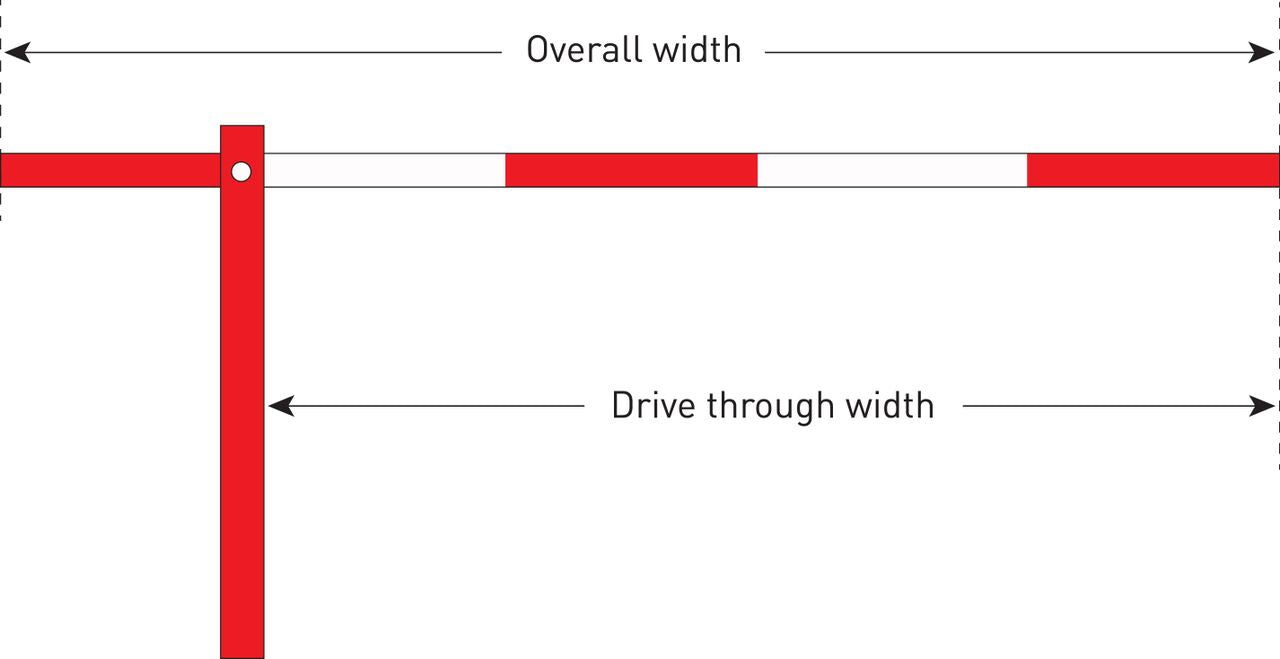

2880mm clearance / 3500mm overall width (765309)
€1,986.24ex VAT
€2,443.08inc VAT
2380mm clearance / 3000mm overall width (765310)
€1,727.16ex VAT
€2,124.41inc VAT
3380mm clearance / 4000mm overall width (765311)
€2,056.68ex VAT
€2,529.72inc VAT
1880mm clearance / 2500mm overall width (765312)
€1,679.28ex VAT
€2,065.51inc VAT
3880mm clearance / 4500mm overall width (765313)
€2,232.12ex VAT
€2,745.51inc VAT
Allow 3 - 4 Weeks For Delivery

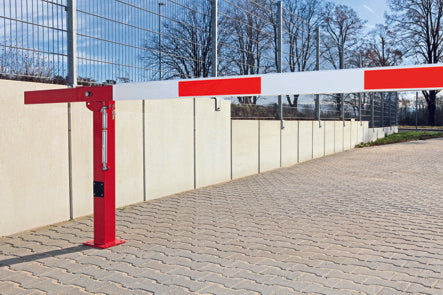

The COMPACT Gas Assisted Boom Barrier is especially suitable for narrow to medium width entrances. Thanks to the use of an oblong aluminium arm this barrier makes a strong statement. The operating action is especially smooth due to the incorporated gas damper.

  • Ranges from 2500mm to 4500mm wide
  • Height - 1000mm
  • Pivot Post - 100 x 100 x 1000mm
  • Base Plate - 200 x 200 x 10mm
  • Barrier Arm - 90 x 60mm aluminium
  • Highly visible white arm with red reflective strips
  • All steel work galvanised and powder coated
  • Surface or sub-surface fixing options
  • Lockable cylinder lock – open or closed
  • Gas damper assisted lifting and lowering action
  • Easy install - bolt down
Anti Rust
High Visibility
Professional Use

The Compact Gas Assisted Boom Barrier makes it quick and easy for you to close off areas to vehicle traffic, allowing you to control who enters a premises and when. These highly effective access barriers make car park or premises control so much easier and will help to deter entry of unwanted vehicles.

Each access barrier is made from high quality materials and will provide excellent use for a long time. The main post on the barrier is made from high quality galvanises steel and the main barrier arm is made from aluminium.

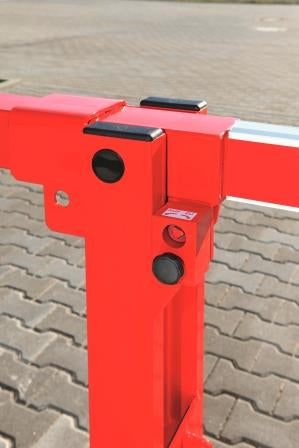

Each barrier is fitted with a cylinder lock and key system that will allow for easy opening and closing of the bollard when required. If needed, the barrier can be locked in an open position, ideal when you can't keep someone on site to operate the barrier during work hours.

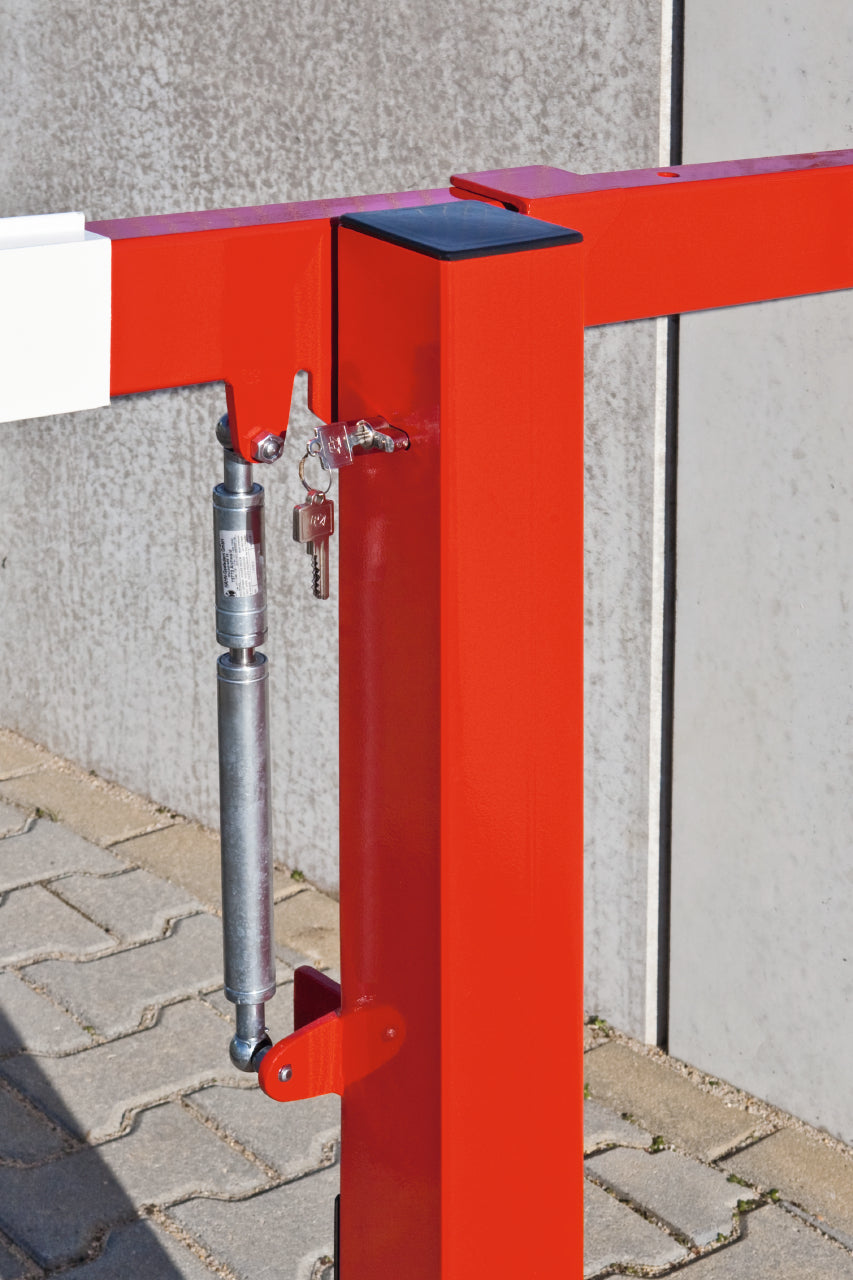

The gas damper assisted mechanism allows for easier lifting of the barrier at all times - the gas strut will take most of the heavy lifting away and provides smooth and controlled lifting.

Each barrier can be bolted directly into the ground and provides instant benefits from the moment it has been installed.

Product Specifications:

  • Steel work: Pivot post: 100 x 100 x 1,000mmH
  • Base plate: 200 x 200 x 10mm
  • Treatment: Galvanised & Powder coated
  • Colour: Red
  • Material: Aluminium 90 x 60mm
  • Finish: White with red reflective strips
  • Max. Length: 4,500mm
  • Locking options: Automatic cylinder lock, non-automatic cylinder lock, triangular key.


  • Arm incorporates ‘Anti-sit’ strip.
  • Pivot post Applications: Narrow to medium width entrances and exits in car parks, buildings, sites etc.


  • Accommodation of customer supplied profile locks
