Cable/Hose Protection Ramp - 5 Channel

Sale price€114.96ex VAT
€141.40inc VAT
SKU: 782712
Protects up to 5 Cables from HGV Traffic

Delivery: Normally 2 - 3 Weeks

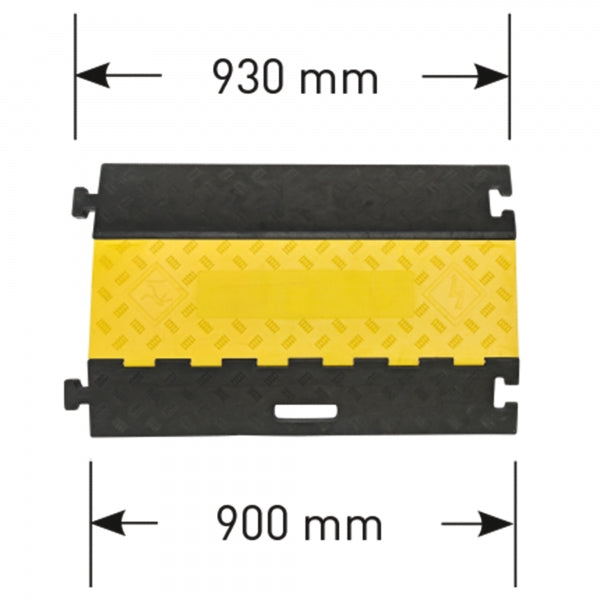

  • 930(L) x 590(W) x 50(H)mm
  • 5 channels - fits cables 38mm high x 35mm wide
  • Made from tough durable rubber
  • Suitable for medium traffic
  • Can withstand weight of up to 8 tonnes per axle
  • Easy to use open and close lid

Pittman Tip: Use appropriate warning signs in the area when in use - Recommended speed 5mph

Professional Use
High Visibility
Heavy Duty
Easy Installation
Rated at 5mp/h

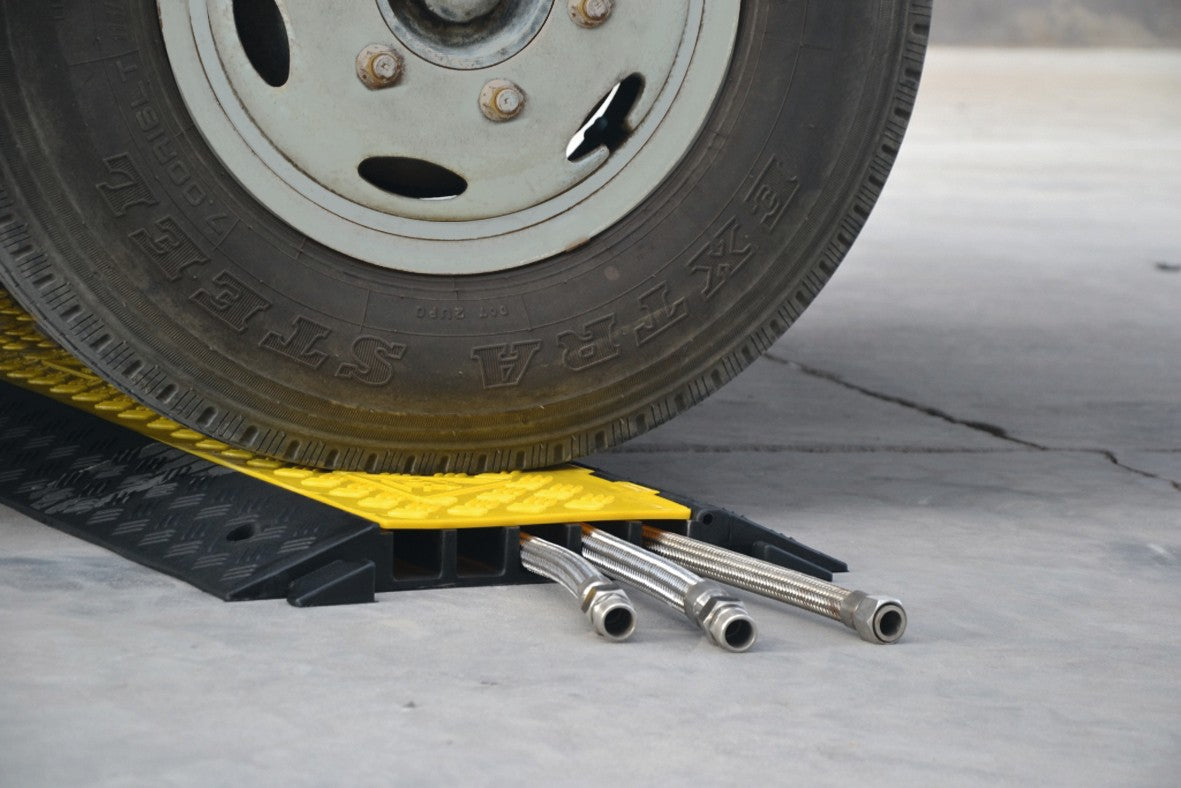

The Hose/Cable Protection Ramp - 5 Channel is an excelelnt addition to many kinds of sites and work areas where cables may be left out in the open.  Using a cable protection ramp helps to protect key wires, hoses or cables from damage, especially where cars or other vehicles may be in use in the area.  These cable ramps are made from a tough and durable rubber, ideal for medium traffic situations.

Each cable protection ramp is equipped with 5 channels - each individual channel can hold a hose or cable that is up to 38mm wide and 35mm high, perfect for many kinds of standard hoses and cables that may be at risk from damage out in the open.

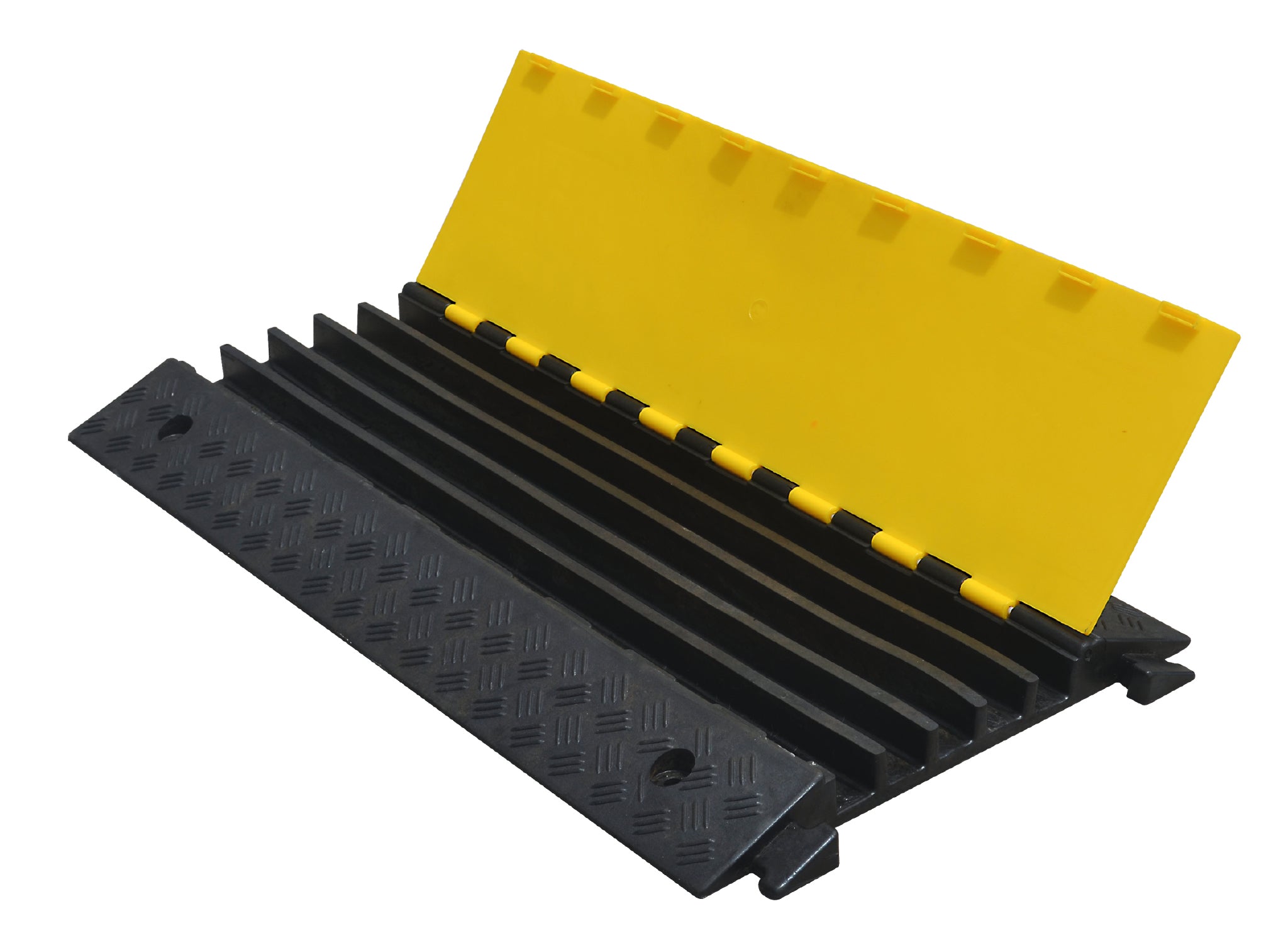

To use the cable protection ramp simply lift the lid and insert the cables and hoses when needed - the lid can then be shut easily to provide instant protection to the cables.  For protecting long lengths of cables and hoses you can attach the ramps end on end with each other easily by using the male and female ends.

The cable protection ramp is 50mm high, with a recommendation that the traffic traversing over the ramp should be slowed down to approximately 5mph.  When using these cable ramps it is very important to display appropriate signage to warn drivers that they are in place.


Product Specifications:

Height: 50mm

Width: 500mm

Length: 900mm

Channels: 5no - 38 x 35mm

Material (body): Hard Rubber

Material (lid): Polypropylene

Weight: 14

Max axle load level: 8 tonnes
